Graphene Thermal Conductive Film Rolled Copper Sheet , 12um 18um Copper Foil Roll

Name: Graphene Thermal Conductive Film Rolled Copper Sheet 12um 18um Copper Foil Roll
Brand: JIMA
Price: 1 USD

Brand Name : JIMA

Model Number : RACU-HC

Certification : SGS, ISO,Reach, RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 1200 Ton per month

Delivery Time : 7-15 days

Packaging Details : Wooden Box

Purity : 99.95%

Inter Diameter : 76 Mm，152 Mm， 3 Inch，6 Inch

Application : Graphene

Standard : IPC-TM-650

thickness : 12um 18um 25um 35um 50um

Contact Now

Rolled Copper Foil For Graphene thermal conductive film and Flexible graphene smartphone 12um 18um 25um 35um 50um

Detail :

>. Application :

1. Graphene,

2. Graphene thermal conductive film;

3. Flexible graphene smartphone

> thickness:12um 18um 25um 35um 50um

> width: can be customize

> Sample can be supply

> Lead time: 7～15days

Typical properties

Classification		Unit	12μm	18μm	25μm	35μm	50μm
1	Cu Purity(Grade: C1020)	%	Min.99.99
2	Thickness Tolerance	μm	±0.3	±0.4	±0.4	±0.5	±0.8
3	Tensile Strength	N/mm2	440-470	450-480	450-470	440-460	410-450
4	Elongation Rate	%	1.0-1.2	1.0-1.2	1.1-1.3	1.1-1.4	1.1-1.5
5	Surface Roughness	μm	Max.0.08
6	Surface Quality		No Wrinkle,No Color Difference,No Scratche,No Pit and Salient Point
7	Storage Condition		Temperature≤25°C, Relative Humidity≤60%, 180 days

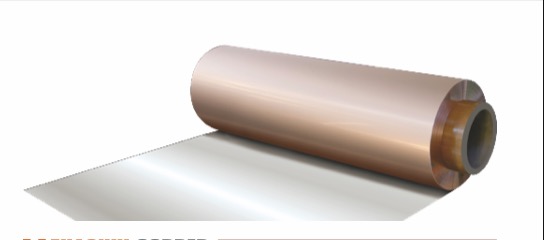

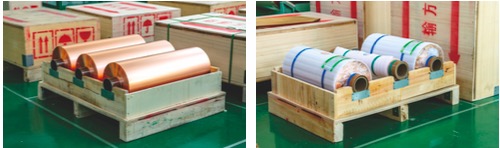

Products Photos & Package Photos

Graphene Thermal Conductive Film Rolled Copper Sheet , 12um 18um Copper Foil Roll
